What is Database Sharding: The Ultimate Guide
When your data gets too big to handle, database sharding can come to the rescue. But it's not without its challenges.

If you're swimming in oceans of data and struggling to keep your head above water, database sharding might just be the lifeboat you need. Managing large amounts of data efficiently and effectively is crucial. In this ultimate guide, we'll explore what database sharding is, the different types of sharding, sharding techniques, how to implement it, and the challenges that come with it.

What is Database Sharding?

Database sharding is a technique used to partition a database into smaller, more manageable pieces called shards. Sharding can be done in different ways, including horizontal sharding, vertical sharding, and directory-based sharding. In other words, instead of storing all the data in a single server, the data is split up and stored across multiple servers. Each server is responsible for a specific subset of the data. This allows for better performance and scalability, as well as improved fault tolerance and availability.

To understand how database sharding works, let's take a look at a simple example. Let's say we have a database with a table containing customer information. We want to shard this database across three servers, so we split the data up into three groups based on some criteria. For example, we could split the data up based on the first letter of the customer's last name. Customers with last names starting with A through G would be stored on the first server, H through N on the second server, and O through Z on the third server.

When a query is made to the database, the query is routed to the appropriate server based on the criteria used to shard the data. So, if a query is made for all customers with last names starting with "S", the query would be sent to the third server. The server would then return the relevant data to the application making the query.

Why is Database Sharding Useful?

Database sharding offers several benefits over traditional database architectures. Here are a few of the key advantages:

Scalability: By splitting the data across multiple servers, database sharding makes it easy to scale a database horizontally. As the amount of data being stored increases, additional servers can be added to handle the additional load.

Performance: Database sharding can improve database performance by distributing the load across multiple servers. This allows for faster queries and better response times.

Fault Tolerance: By storing data across multiple servers, database sharding provides improved fault tolerance. If one server fails, the remaining servers can continue to operate and serve data.

Availability: With data stored across multiple servers, database sharding can improve availability. Even if one server goes down, the database can continue to operate and serve data from the remaining servers.

Real-Time Data Pipeline Integration: Sharding and Real-Time Data Pipelines work hand in hand. Such pipelines ensure seamless data flow across servers, benefiting applications dealing with changing user interactions and sensor data. A well-implemented Real-Time Data Pipeline, like Estuary's, augments your sharding strategy, harnessing distributed architecture for better insights.

Types of Sharding

There are three main types of sharding: horizontal, vertical, and directory-based.

Horizontal Sharding

Horizontal sharding involves partitioning data based on a specific attribute, such as customer location or product type. This technique distributes data evenly across shards, ensuring that each shard contains a similar amount of data. Horizontal sharding can improve query performance and scalability by allowing databases to be spread across multiple servers.

Vertical Sharding

Vertical sharding involves splitting a database into multiple tables, with each table storing different types of data. For example, a database for an e-commerce website might have one table for customer data, one for product data, and one for order data. Each table can be stored on a separate server to improve performance and scalability.

Directory-Based Sharding

Directory-based sharding involves using a central directory to map data to shards. This technique provides flexibility to add or remove shards as needed without affecting the application logic. The directory can be updated to reflect changes in the data distribution, and queries can be optimized to take advantage of the shard layout.

Database Sharding Techniques

There are several techniques for assigning data to shards in a sharded database. These include key-based sharding, range-based sharding, and hash-based sharding.

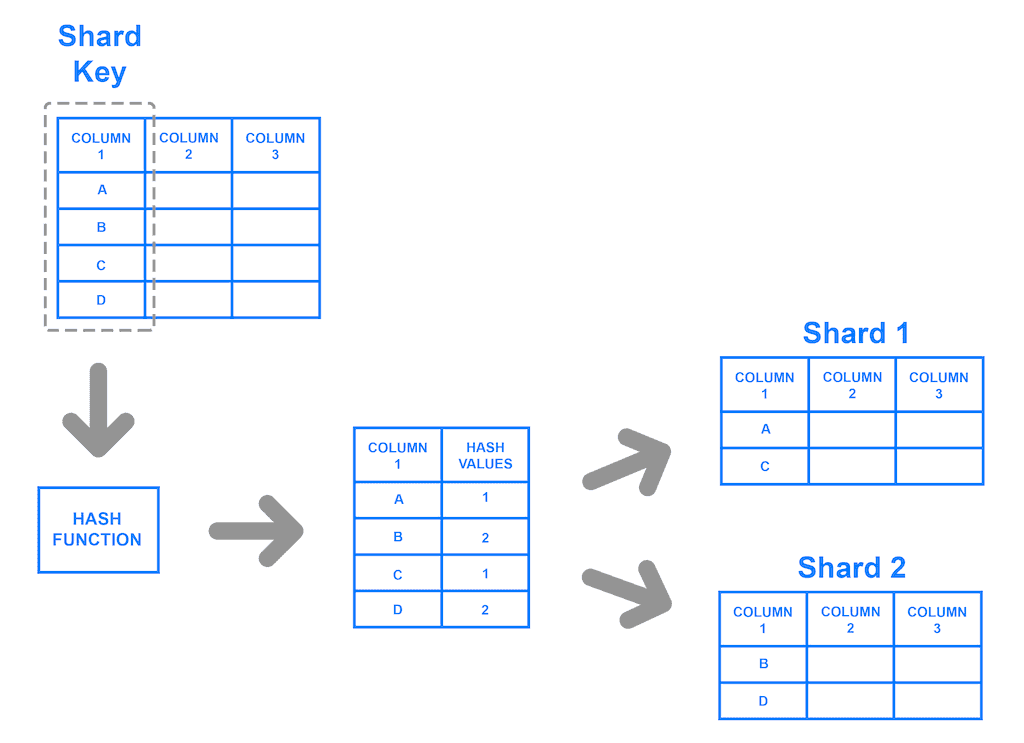

Key-Based Sharding

Key-based sharding involves assigning data to shards based on a unique identifier, such as a customer ID or order number. This technique ensures that related data is stored on the same shard, improving query performance by reducing the need for cross-shard queries. Key-based sharding can also simplify data distribution by ensuring that new data is assigned to the correct shard.

Blog Post Image


Source: DigitalOcean

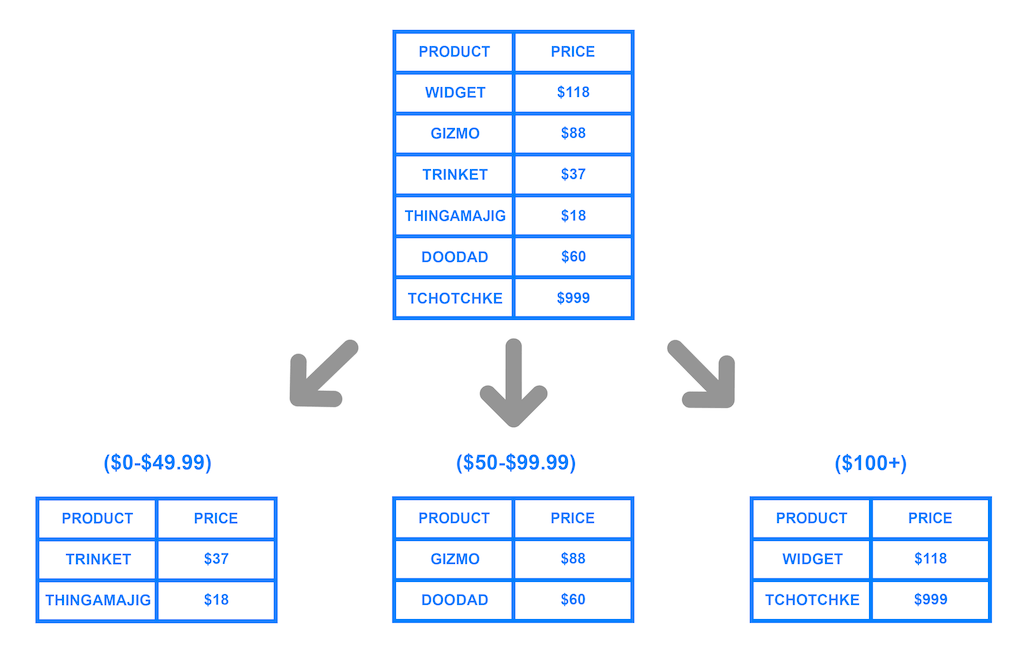

Range-Based Sharding

Range-based sharding involves dividing data based on a range of values, such as the date or price of a product. This technique can improve query performance by allowing queries to be targeted to specific shards based on the range of data being queried. Range-based sharding can also reduce the need for cross-shard queries by ensuring that related data is stored on the same shard.

Blog Post Image

Source: DigitalOcean

Hash-Based Sharding

Hash-based sharding involves using a hash function to distribute data evenly across shards. This technique provides uniform data distribution, ensuring that each shard contains an equal amount of data. Hash-based sharding can be used for both key-based and range-based sharding, allowing for flexibility in how data is assigned to shards.

Choosing the right sharding technique depends on the specific needs of your application and the nature of the data being stored. You can use a combination of these techniques to optimize performance and scalability.

Implementing Database Sharding

Now that we have explored the types and techniques of sharding, let's dive into the implementation of database sharding. This section will cover the necessary steps involved in implementing sharding in your database, as well as some of the challenges that come with it.

When implementing database sharding, there are several key steps that must be taken into consideration.

Determining if sharding is necessary: Before implementing sharding, it's important to evaluate whether it is necessary for your specific use case. Sharding can offer significant performance improvements for large, complex databases, but it also introduces added complexity and overhead.

Choosing a sharding technique: Once you've determined that sharding is necessary, you'll need to select a sharding technique that best fits your database and use case. The three most common techniques are key-based sharding, range-based sharding, and hash-based sharding.

Data distribution: When distributing data across shards, it's important to ensure that data is evenly distributed to prevent uneven loads on individual shards. It's also important to minimize data duplication to reduce storage requirements and improve performance.

Querying data: Queries in a sharded database can be more complex than in a non-sharded database. It's important to optimize queries for sharded databases and handle cross-shard queries efficiently to prevent performance issues.

Scaling databases: Sharded databases can be scaled horizontally by adding more shards or vertically by increasing server resources. It's important to monitor performance and adjust the number of shards as necessary to ensure optimal performance.

Monitoring performance and adjusting as necessary: It's important to monitor the performance of your sharded database and adjust your configuration as necessary to optimize performance.

Challenges of Database Sharding

Implementing database sharding can introduce several challenges that must be addressed.

Data consistency: Maintaining data consistency across all shards can be challenging, especially when handling updates and deletions. It's important to have a system in place to ensure that changes are propagated to all shards in a timely manner.

Increased complexity: Sharding introduces added complexity, which can make it more challenging to manage and maintain a database. This includes managing multiple shards and servers, handling failures and backups, and ensuring that shards are balanced and evenly distributed.

Managing shards: Managing shards can be challenging, especially when adding or removing shards. It's important to ensure that new shards are added seamlessly and that data is distributed evenly across all shards.

Monitoring and maintaining shard health: It's important to monitor the health of each shard to ensure that it's performing optimally and to detect issues before they become critical.

Implementing database sharding can be a complex process, but with careful planning and attention to detail, it can provide significant performance improvements for large, complex databases.

Conclusion

Database sharding has become an essential technique for managing large amounts of data efficiently and effectively in today's data-driven world. This ultimate guide has explored what database sharding is, its different types, and techniques, how to implement it, and the challenges that come with it.

With its ability to improve scalability, performance, fault tolerance, and availability, sharded database offers several benefits over traditional database architectures. Choosing the right sharding technique depends on the specific needs of your application and the nature of the data being stored.
